ST80B (Ø80mm) Pole Mount Type Bulb Steady/Flashing Tower Lights

Ø80mm Big Tower Light of Poloe Mounting Type, Excellent Visibility from a Distance in Wide Working Space

External Diameter :
Ø80mm
Height :
317~597mm
Voltage :
DC12V,24V
AC110V,220V
  • Excellent Visibility from a Distance in Wide Working Space
  • Using bulb with high durability and long lifespan
  • Using various types of brackets with practicality and briliant appearance
  • Flashes : 60~80/min.
  • Volume(Buzzer Built-in Type) : 90dB (2 Buzzer Sound Type is custom made)
  • Material : Lens-AS, Body-ABS, Pole-Al
  • Certificate : CE
  • Protection Class : IP44 (Buzzer Built-in Type : IP23)

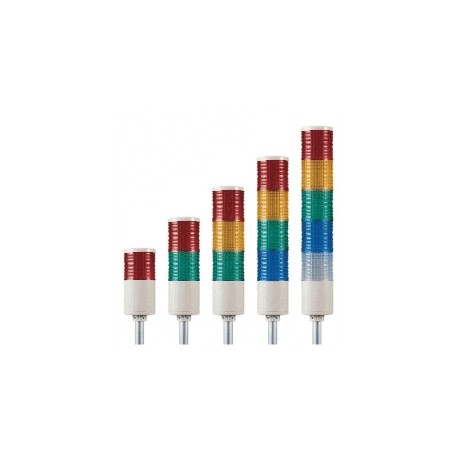

  • The right photo is standard color combination of 1~5 layers product. Other color combination is custom made.

Mounting bracket

ST80B

Description

Product Specification

Model Layer Rated Voltage Current Bulb Weight Color

  ST80B
Bulb Steady

ST80BF
Bulb Steady/Flashing

ST80B-BZ
  Bulb Steady with
Buzzer

ST80BF-BZ
  Bulb Steady/Flashing
with Buzzer

1

AC/DC12V

0.714A

12V10W

T16x35 15S

 9

0.64Kg

 R-Red

AC/DC24V

0.370A

24V10W

T16x35 15S

 10

0.64Kg

AC110V

0.083A

110V10W

T16x28 9S

 12

0.64Kg

AC220V

0.042A

220V10W

T16x28 9S

 13

0.64Kg

2

AC/DC12V

1.428A

12V10W

T16x35 15S

 9

0.80Kg

 R-Red
 G-Green

AC/DC24V

0.740A

24V10W

T16x35 15S

 10

0.80Kg

AC110V

0.166A

110V10W

T16x28 9S

 12

0.80Kg

AC220V

0.084A

220V10W

T16x28 9S

 13

0.80Kg

3

AC/DC12V

2.142A

12V10W

T16x35 15S

 9

0.96Kg

 R-Red
 A-Amber
 G-Green

AC/DC24V

1.110A

24V10W

T16x35 15S

 10

0.96Kg

AC110V

0.249A

110V10W

T16x28 9S

 12

0.96Kg

AC220V

0.126A

220V10W

T16x28 9S

 13

0.96Kg

4

AC/DC12V

2.856A

12V10W

T16x35 15S

 9

1.12Kg

 R-Red
 A-Amber
 G-Green
 B-Blue

AC/DC24V

1.480A

24V10W

T16x35 15S

 10

1.12Kg

AC110V

0.332A

110V10W

T16x28 9S

 12

1.12Kg

AC220V

0.168A

220V10W

T16x28 9S

 13

1.12Kg

5

AC/DC12V

3.570A

12V10W

T16x35 15S

 9

1.28Kg

 R-Red
 A-Amber
 G-Green
 B-Blue
 W-White

AC/DC24V

1.850A

24V10W

T16x35 15S

 10

1.28Kg

AC110V

0.415A

110V10W

T16x28 9S

 12

1.28Kg

AC220V

0.210A

220V10W

T16x28 9S

 13

1.28Kg


Signal Line Current & Contact Point Capacity (for 1 Layer)

Rated Voltage Signal Line Current Rush Current External Contact Point Capacity Buzzer Line Current

                     AD/DC 12V

0.714A

abt.11.0A

Over 12A

0.015A

                     AD/DC 24V

0.370A

abt.6.0A

Over 7A

0.028A

                     AC 110V

0.083A

abt.1.2A

Over 2A

0.021A

                     AC 220V

0.042A

abt.0.6A

Over 1A

0.038A

Sound Tone Combination of Standard Product

Main Built-in Sounds Sound Tone Volume
1 Buzzer Sound High Expansion Foam Release (PI~ Continuous) MAX 90dB
2 Buzzer Sounds High Expansion Foam Release (PI~ Continuous)
Machinery Fault (PI-PI-PI-PI Short Interval)
MAX 90dB

Wiring

AC,DC Steady Product

  • Power Line & Signal Line out from the product : UL1007-NO.22(0.3sq) 400mm
    AC Product : Wire regardless of cable color
    DC Product : Black line is Negative(-).



AC,DC Steady/Flashing Product

  • Power Line out from the product : UL1015-NO.18(0.75sq) x 2c 400mm
    AC Product : Wire regardless of cable color
    DC Product : Black line is Negative(-)
  • Signal Line out from the product격 : UL1007-NO.22 (0.3sq) 400mm

Spwcial wiring type is custom made.

Wiring Diagram

ST80B

Available Specification

ST80B (BZ) 4 24 RAGB SZ24
Model Buzzer Layer Voltage Color Bracket
         ST80B

ST80BF

  None-Standard

BZ(Order)
-with Buzzer

      1-1 Layer
2-2 Layers
3-3 Layers
4-4 Layers
5-5 Layers
      12-DC12V
24-DC24V
110-AC110V
220-AC220V
        R-Red
 A-Amber
 G-Green
 B-Blue
 W-White
   None-Standard
LB24
LW24
SZ24
SL24
  • Product user may selct the combination of lens color.
